Basic OS : Debian



CPU : RK3566 with NPU 1 TOPS



Radxa Camera 8M 219

My Camera : /dev/video-camera0

- Stream didn't work on remote desktop, but capture worked.

apt install eog  # light weight image viewer



Python version 3.9.2

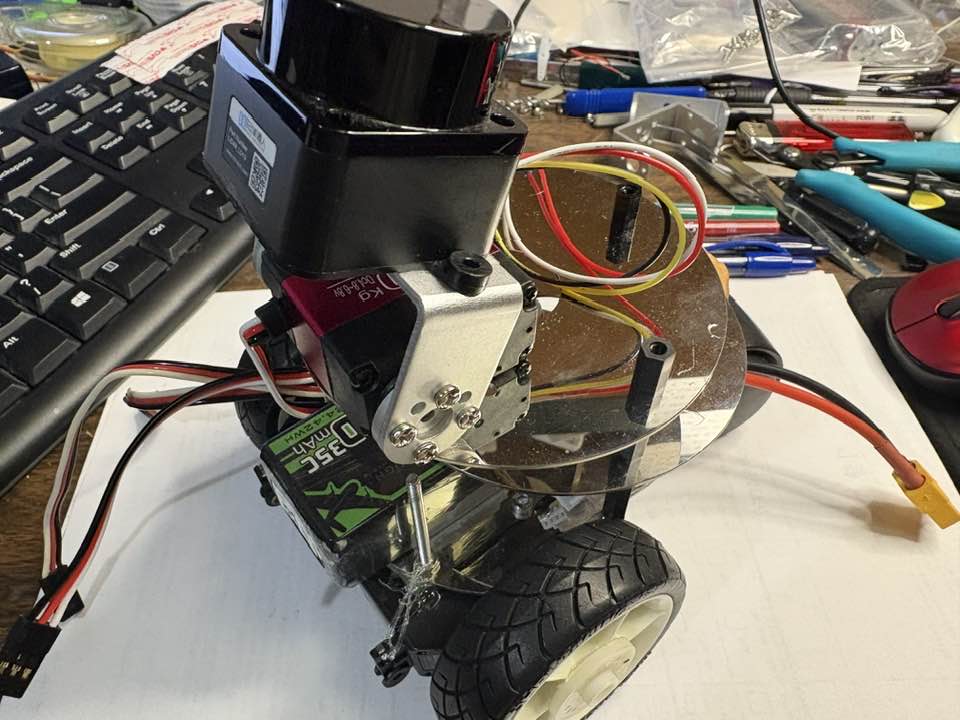

2D Lidar connection to UART : UART3-M0 or UART5-M1



I2C Master connection to Mini :

   I2C4-M0 :

      Pin27 (Red Cable)

      Pin28 (Yellow Cable)



------------------------------------

Arduino Pro Mini (ATmega 328P 3V3 8Mhz)'s pin usage



7 : Lidar Servo

8 : Left Wheel

9 : Right Wheel



I2C Slave connection to Radxa mini 3W :

   A4 (SDA) - Red Cable

   A5 (SCL) - Yellow Cable



------------------------------------------

(Updates done)

apt install unzip        # file extractor : needed for rknn library zip file extraction

apt install cheese      # camera viewer - without monitor, it doesn't work.

apt install guvcview  # camera viewer - without monitor, it doesn't work.

apt install eog  # light weight image viewer, used to check image grabbed by camera.





(for Lazarus IDE installation) - with fpcupdeluxe

apt install make

apt install gdb

apt install libx11-dev libgtk2.0-dev

  then Run fpcupdeluxe
