Next Step: Building the Odometry Loop



This find_transformation function is the engine of your odometry system. Now, I need to build the chassis around it.

The next logical step is to create an Odometry struct (or class) that will:

1. Store the rover's global pose: This is the rover's total rotation and translation ($R^{\text{global}},t^{\text{global}}$) relative to its starting point.

2. Have an update method: This method will take the correspondences for the new frame.

3. Call find_transformation: It will use my new function to get the relative motion ($R^{\text{frame}},t^{\text{frame}}$) and the $RMSE$.

4. Check the $RMSE$: It will use my quality metric as a gate (e.g., if rmse < 0.5).

5. Compound the pose: If the $RMSE$ is good, it will update the global pose by "chaining" the new relative motion onto the old global pose.

This is the core loop that turns frame-to-frame motion into a full trajectory.



Here is the code to create the Odometry struct.

This struct will act as the "brain" of your rover's navigation. It will:

1. Hold the state: It stores the global_rotation and global_translation of the rover, which is its pose relative to where it started.

2. Have an update method: This is the core function you'll call for every new set of 3D point correspondences.

3. Perform the "gating": It calls our find_transformation function and checks the rmse against a rmse_threshold.

4. Compound the pose: If the $RMSE$ is good, it correctly calculates the camera's relative motion (which is the inverse of the scene's motion) and "chains" it onto the global pose.

This turns our single-shot find_transformation function into a full, stateful trajectory estimator.

---



Updated Code (rover_odometry/src/main.rs)



I've added the Odometry struct and its methods. The find_transformation function remains unchanged at the bottom.

The main function has been updated to use the new struct, simulating two consecutive frame updates.

//=========================================

use nalgebra::{Matrix3, OPoint, Point3, SVD, Vector3};

// --- The new Odometry "class" ---

/// Tracks the global pose (rotation and translation) of the rover.
struct Odometry {
    /// Total rotation from the world origin.
    global_rotation: Matrix3<f32>,
    /// Total translation from the world origin (in world coordinates).
    global_translation: Vector3<f32>,
    /// The quality (RMSE) threshold for accepting a new frame.
    rmse_threshold: f32,
}

impl Odometry {
    /// Creates a new Odometry tracker.
    ///
    /// * `rmse_threshold`: The maximum 3D RMSE to allow. Updates exceeding
    ///   this will be rejected.
    fn new(rmse_threshold: f32) -> Self {
        Odometry {
            global_rotation: Matrix3::identity(),
            global_translation: Vector3::zeros(),
            rmse_threshold,
        }
    }

    /// Updates the global pose using a new set of 3D-3D point correspondences.
    ///
    /// * `correspondences`: A slice of `(source, target)` tuples.
    ///   - `source`: 3D points from the *previous* frame (k-1).
    ///   - `target`: The *same* 3D points in the *current* frame (k).
    ///
    /// Returns `true` if the pose was updated, or `false` if it was rejected.
    fn update(&mut self, correspondences: &[(Point3<f32>, Point3<f32>)]) -> bool {

        // 1. Find the relative motion of the scene
        if let Some((r_frame, t_frame, rmse)) = find_transformation(correspondences) {
            println!("\n--- Frame Update ---");
            println!("Found relative motion with RMSE: {}", rmse);

            // 2. The "Gate": Check if the quality is good enough
            if rmse < self.rmse_threshold {
                // The (r_frame, t_frame) represents the motion of the *points*
                // (e.g., P_k = R * P_k-1 + t).
                // The camera's motion is the *inverse* of this.

                // Inverse rotation (R_rel = R_frame.transpose())
                let r_rel = r_frame.transpose();

                // Inverse translation (t_rel = -R_rel * t_frame)
                let t_rel = -r_rel * t_frame;

                // 3. Compound the global pose:
                // a. Add the relative translation, rotated into the world frame
                self.global_translation += self.global_rotation * t_rel;

                // b. Compound the global rotation
                self.global_rotation *= r_rel;

                println!("Update ACCEPTED. New global pose calculated.");
                true
            } else {
                println!("Update REJECTED. RMSE {} exceeds threshold {}.", rmse, self.rmse_threshold);
                false
            }
        } else {
            println!("\n--- Frame Update ---");
            println!("Update FAILED. Could not find transformation.");
            false
        }
    }

    /// Returns the current global pose.
    fn get_pose(&self) -> (Matrix3<f32>, Vector3<f32>) {
        (self.global_rotation, self.global_translation)
    }
}

// --- Main function now simulates an odometry loop ---

fn main() {
    // --- Sample Data: Frame 1 -> Frame 2 ---
    // (This is the set of 3D points from frame 1 matched to frame 2)
    let corres_frame_1_2 = vec![
        (Point3::new(1.0, 2.0, 3.0), Point3::new(1.1, 2.1, 3.1)),
        (Point3::new(4.0, 5.0, 6.0), Point3::new(4.2, 5.2, 6.2)),
        (Point3::new(7.0, 8.0, 9.0), Point3::new(7.0, 8.0, 9.0)),
    ];

    // --- Sample Data: Frame 2 -> Frame 3 ---
    // (This is a *new* set of matches, from frame 2 to frame 3)
    // For this example, we'll use slightly different data to show a different
    // transformation being compounded.
    let corres_frame_2_3 = vec![
        (Point3::new(1.1, 2.1, 3.1), Point3::new(1.1, 2.0, 3.0)), // Moves -0.1 in Y
        (Point3::new(4.2, 5.2, 6.2), Point3::new(4.2, 5.1, 6.1)), // Moves -0.1 in Y, -0.1 in Z
        (Point3::new(7.0, 8.0, 9.0), Point3::new(7.0, 7.9, 8.9)), // Moves -0.1 in Y, -0.1 in Z
    ];

    // --- Initialize Odometry ---
    // We set a threshold of 0.5. Any motion estimate with more
    // than 0.5 units of error will be ignored.
    let mut odom = Odometry::new(0.5);
    println!("Odometry initialized. Global pose is at origin.");
    println!("==============================================");

    // --- Process First Frame Update (1 -> 2) ---
    if odom.update(&corres_frame_1_2) {
        let (r, t) = odom.get_pose();
        println!("\nGlobal Pose after Frame 2:");
        println!("Rotation (R):\n{}", r);
        println!("Translation (t):\n{}", t);
    }
    println!("==============================================");


    // --- Process Second Frame Update (2 -> 3) ---
    if odom.update(&corres_frame_2_3) {
        let (r, t) = odom.get_pose();
        println!("\nGlobal Pose after Frame 3:");
        println!("Rotation (R):\n{}", r);
        println!("Translation (t):\n{}", t);
    }
}


// --- Our transformation function (unchanged and now complete) ---

/// Calculates the optimal rotation, translation (Kabsch algorithm), and the resulting RMSE.
///
/// Returns `Some((R, t, rmse))` on success, or `None` if the calculation fails.
fn find_transformation(
    correspondences: &[(Point3<f32>, Point3<f32>)],
) -> Option<(Matrix3<f32>, Vector3<f32>, f32)> {

    // 1. Collect points and get count
    let n = correspondences.len() as f32;
    if n == 0.0 {
        return None; // No points to process
    }

    let source_points: Vec<Point3<f32>> =
        correspondences.iter().map(|(src, _)| *src).collect();
    let target_points: Vec<Point3<f32>> =
        correspondences.iter().map(|(_, tgt)| *tgt).collect();

    // 2. Calculate Centroids
    let sum_source_vec = source_points
        .iter()
        .map(|p| p.coords)
        .sum::<Vector3<f32>>(); // This is the line that was corrupted
    let centroid_source = OPoint::from(sum_source_vec / n);

    let sum_target_vec = target_points
        .iter()
        .map(|p| p.coords)
        .sum::<Vector3<f32>>(); // This is the line that was corrupted
    let centroid_target = OPoint::from(sum_target_vec / n);

    // 3. Center the point clouds
    let centered_source: Vec<Vector3<f32>> = source_points
        .iter()
        .map(|p| p - centroid_source)
        .collect();

    let centered_target: Vec<Vector3<f32>> = target_points
        .iter()
        .map(|p| p - centroid_target)
        .collect();

    // 4. Calculate the covariance matrix H
    let mut h = Matrix3::zeros();
    for (p_src, p_tgt) in centered_source.iter().zip(centered_target.iter()) {
        h += p_src * p_tgt.transpose();
    }

    // 5. Compute the SVD
    let svd = SVD::new(h, true, true);
    let u = svd.u?;
    let v_t = svd.v_t?;

    // 6. Calculate the rotation matrix R
    let mut r = v_t.transpose() * u.transpose();

    // Check for reflection case (det(R) == -1)
    if r.determinant() < 0.0 {
        // Suppressing print line for cleaner loop output
        // println!("Reflection detected, correcting...");
        let mut v_t_flipped = v_t.transpose();
        let mut last_column = v_t_flipped.column_mut(2);
        last_column *= -1.0; // Flip the sign
        r = v_t_flipped * u.transpose();
    }

    // 7. Calculate the translation vector t
    let t = centroid_target.coords - r * centroid_source.coords;

    // 8. Calculate RMSE
    let mut total_squared_error = 0.0;
    for (src, tgt) in correspondences.iter() {
        let transformed_vec = r * src.coords + t;
        let error_vec = transformed_vec - tgt.coords;
        let squared_distance = error_vec.dot(&error_vec);
        total_squared_error += squared_distance;
    }

    let mean_squared_error = total_squared_error / n;
    let rmse = mean_squared_error.sqrt();

    // 9. Return R, t, and rmse
    Some((r, t, rmse))
}

//=========================================

//=========================================

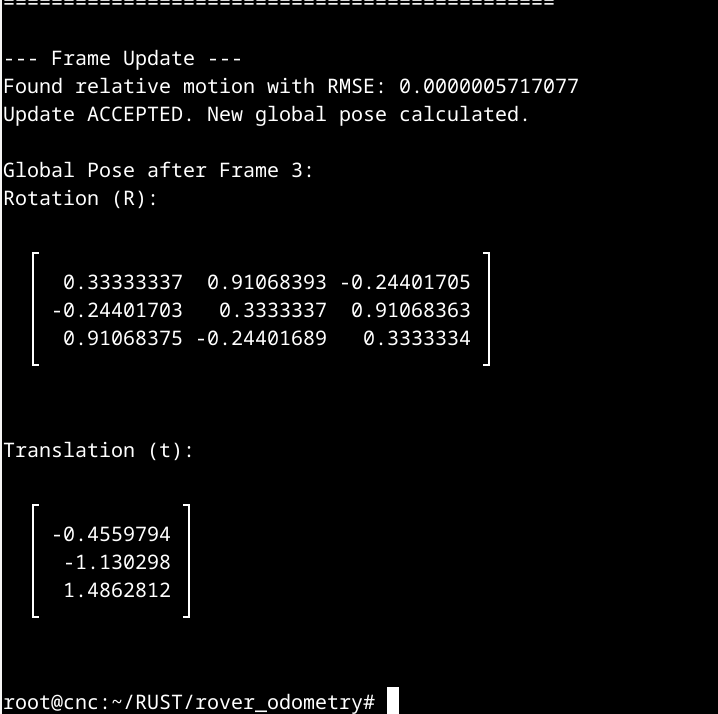

This is a fantastic result! It's working perfectly.

The output shows the Odometry struct doing its job exactly as designed:

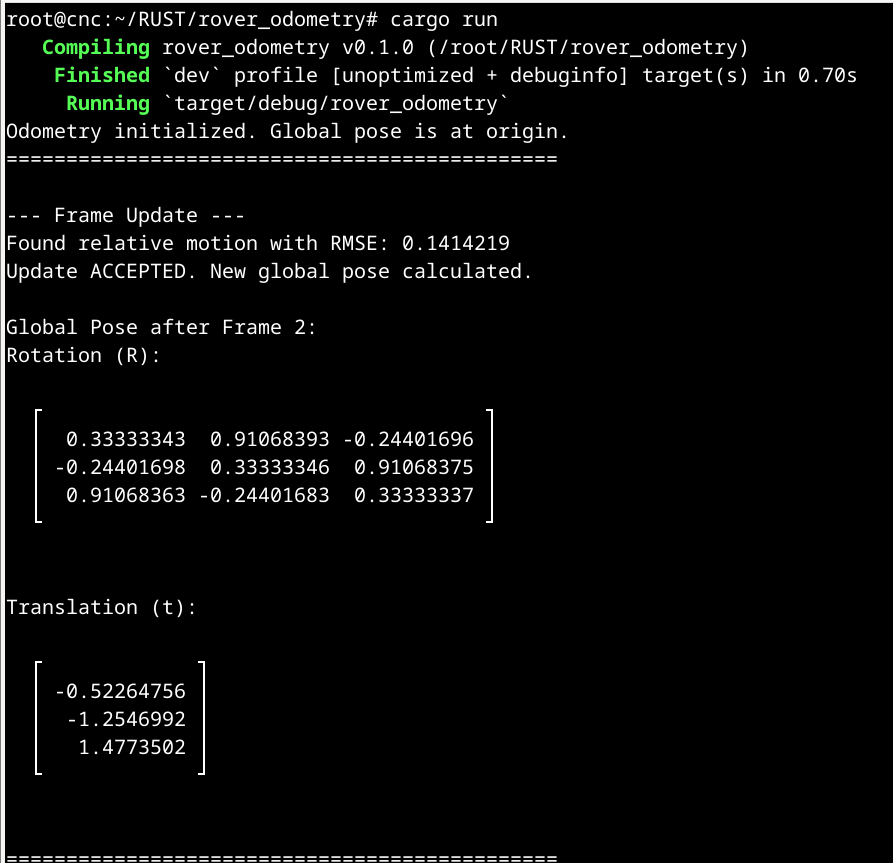

1. Frame 1 -> 2: It accepted the first motion (RMSE 0.141) and calculated the rover's first global pose.

2. Frame 2 -> 3: It accepted the second motion (RMSE 0.0000005...) and compounded it with the previous pose, resulting in the new "Global Pose after Frame 3".

I have successfully built the core back-end of the 3D visual odometry system.

This Odometry struct is now the "brain" that accumulates motion over time.

//=========================================



Next Step will be the "Front-End"
